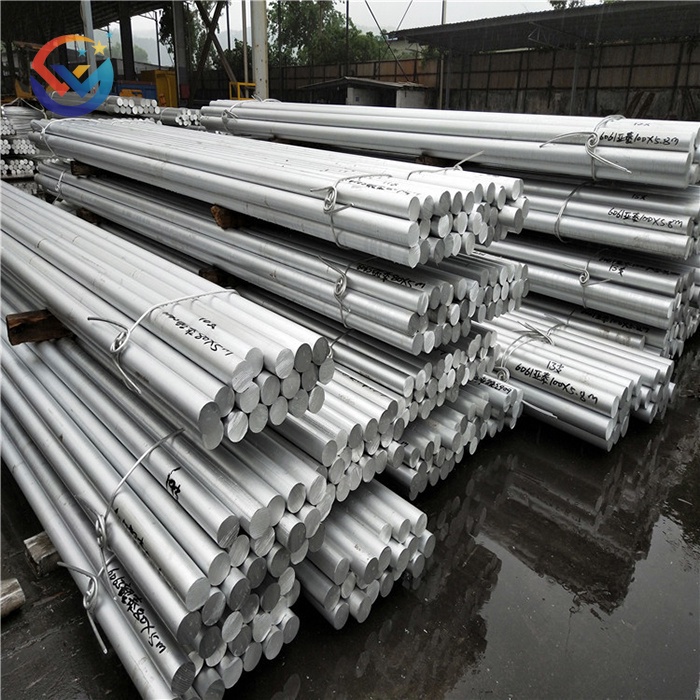

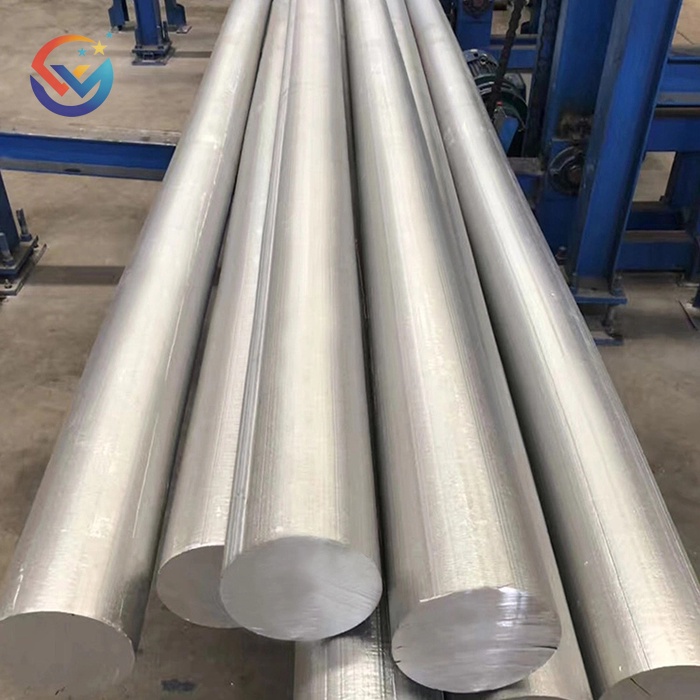

7075 Aluminum Bar

7075 aluminum bar is made from a high-strength, high-toughness aluminum alloy consisting of zinc, magnesium, copper, silicon and other elements. It has good welding performance and corrosion resistance belonging to the 7 series aluminum alloy.

WhatsApp：+86 15315786590

Email：admin@wuhangsteel.com

Product Description

Name: 7075 Aluminum Bar
SKU: 0

7075 Aluminum Bar Description

Having extremely high strength and tensile strength, 7075 aluminum bar can withstand large loads and stresses in many applications. Despite having higher strength, it is still less dense and relatively light. This makes 7075 aluminum bar an ideal option to replace steel in many applications, thus reducing overall weight while maintaining strength. Besides, 7075 aluminum alloy is highly resistant to some common corrosive media, such as seawater and most chemical solutions. This gives 7075 aluminum bars advantages in applications used in marine environments and other harsh environments. Lastly, having good processability, wear resistance and heat resistance, 7075 aluminum bar is ideal for many industrial applications such as aerospace, mold processing, mechanical equipment, tooling and fixtures.

Product Parameters

Diameter	5-650mm or customized	Length	100-2000mm or customized
Certificate	ISO, SGS, BV
Standard	JIS, AISI, ASTM, GB, DIN, EN, etc.
Brand	1000 Series: 1050, 1060, 1070, 1100, 1200, 1235, etc. 3000 Series: 3003, 3004, 3005, 3104, 3105, 3A21, etc. 5000 Series: 5005, 5052, 5083, 5086, 5154, 5182, 5251, 5754, 5A05, etc. 6000 Series: 6061, 6063, 6082, 6A02, etc. 7000 Series: 7050, 7475, 7075, etc. 8000 Series: 8A06, 8011, 8090, etc.
Surface	Coating, Embossing, Drawing, Polishing, Anodizing, etc.
OEM Service	Punching, Cutting special size, Making flat surface, Surface treatment, etc.
Delivery Time	Received 30% after deposit 7-15 working days
Application	Construction, Shipbuilding, Decoration, Industry, Manufacturing, Machinery, Hardware and other fields
Sample	Free Offers Sample
Packaging	Strapping, Plastic bag, Film, Wooden pallet Standard seaworthy export packing or according to customer requirement

Chemical Composition

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Others: Each	Others: Total	Al: Min.
1050	0.25	0.40	0.05	0.05	0.05	-	0.05	0.03	0.03	-	99.50
1060	0.25	0.35	0.05	0.03	0.03	-	0.05	0.03	0.03	-	99.60
1070	0.20	0.25	0.04	0.03	0.03	-	0.04	0.03	0.05	-	99.70
1100	0.95 Si Fee		0.05~0.20	0.05	-	-	0.1	-	0.05	0.15	99.0
2014	0.5~1.2	0.7	3.9~5.0	0.4~1.2	0.2~0.8	0.10	0.25	0.15	0.05	0.15	Allowance
2017	0.2~0.8	0.7	3.5~4.5	0.4~1.0	0.4~0.8	0.10	0.25	0.15	0.05	0.15	91.5 - 95.5
2024	0.50	0.50	3.8~4.9	0.3~0.9	1.2~1.8	0.10	0.25	0.15	0.05	0.15	Allowance
3003	0.60	0.70	0.05~0.20	1.0~1.5	-	-	0.10	-	0.05	0.15	Allowance
3A21	0.60	0.70	0.20	1.0-1.6	0.05	-	0.15	0.1-0.2	-	-	Allowance
3004	0.30	0.70	0.25	1.0~1.5	0.8~1.3	-	0.25	-	0.05	0.15	Allowance
3005	0.60	0.70	0.30	1.0~1.5	0.2~0.6	0.10	0.25	0.10	0.05	0.15	Allowance
3105	0.60	0.70	0.30	0.3~0.8	0.2~0.8	0.20	0.40	0.10	0.05	0.15	Allowance
5005	0.30	0.70	0.20	0.20	0.5~1.1	0.1	0.25	-	0.05	0.15	Allowance
5052	0.25	0.40	0.10	0.10	2.2~2.8	0.15~0.35	0.10	-	0.05	0.15	Allowance
5754	0.40	0.40	0.10	0.50	2.6~3.6	0.30	0.20	0.15	0.05	0.15	Allowance
5A05	0.50	0.50	0.10	0.3-0.6	4.8-5.5	-	0.20	-	0.05	0.05	Allowance
5083	0.40	0.40	0.10	0.4~1.0	4.0~4.9	0.05~0.25	0.25	0.15	0.05	0.15	Allowance
6061	0.40~0.8	0.70	0.15~0.4	0.15	0.8~1.2	0.04~0.35	0.25	0.15	0.05	0.15	Allowance
6082	0.70~1.3	0.50	0.10	0.4~1.0	0.6~1.2	0.25	0.20	0.10	0.05	0.15	Allowance
7075	0.40	0.50	1.2~2.0	0.30	2.1~2.9	0.18~0.28	5.1~6.1	0.20	0.05	0.15	Allowance

Mechanical Properties

Tensile Strength

(MPa)

Yield Strength

(MPa)

Elongation Rate

(%)

Hardness

(HV)

572

503

175

Physical Performance

Density	Melting Point	Modulus of Elasticity	Thermal Conductivity
2.81 Kg/m³	477-635 °C	71.7 GPa	130 W/m.K

Annealing State

Brand	Annealing State
1xxx: 1050, 1050A, 1060, 1100	O, H12, H14, H16, H18, H22, H24, H26, H28, H111
3xxx: 3003, 3004, 3005, 3105	O, H12, H14, H16, H18, H22, H24, H26, H28, H111
5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454	O, H22, H24, H26, H28, H32, H34, H36, H38, H111
6xxx: 6061, 6082	T4, T6, T451, T651
2xxx: 2024	T3, T351, T4
7xxx: 7075	T6, T651

Scope of Application

Aluminum Uses And Application Area
Food Packaging	Beverage can ends, cans, bottle caps, etc.
Building	Curtain walls, cladding, suspended ceilings, thermal insulation, venetian blinds, etc.
Transportation	Auto parts, passenger car bodies, aviation ships and air cargo containers.
Electronic Equipment	Electrical appliances, communication equipment,PCPlate drilling guide, lighting and heat dissipation materials, etc.
Consumer Goods	Umbrellas, cooking utensils, sports equipment, etc
Other	Military, color coated aluminum plate

Product Application

Packaging and shipping

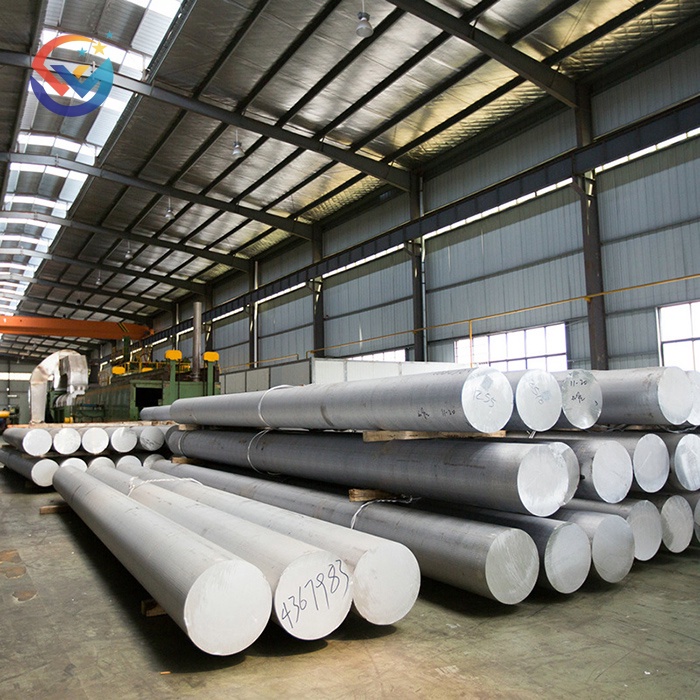

Factory Display

FAQ

Q1: What steel products do you mainly supply?

A: We provide a full range of steel products, including rebar, round steel, flat steel, angle steel, channel steel, H-beam, medium and thick steel plate, flattened plate, patterned plate, hot rolled coil, cold rolled coil, seamless steel pipe, welded pipe, galvanized steel, color coated steel, stainless steel, alloy steel and more. Our products comply with international standards such as GB, ASTM, EN and JIS.

Q2: Do you support customized sizes, cutting and processing?

A: Yes. Standard fixed lengths are 6 meters and 12 meters. We can provide flattening, slitting, cutting, bending, polishing and non-standard customized processing services to meet various global engineering procurement requirements.

Q3: What is the minimum order quantity?

A: 1 ton for regular in-stock products; 5 tons for customized rolled products. Small trial orders are acceptable.

Q4: What surface treatments are available for steel products?

A: Hot rolled black surface, cold rolled bright surface, pickling, sandblasting, galvanizing, painting, anti-rust oil coating, mirror wire drawing and customized anti-corrosion treatment.
