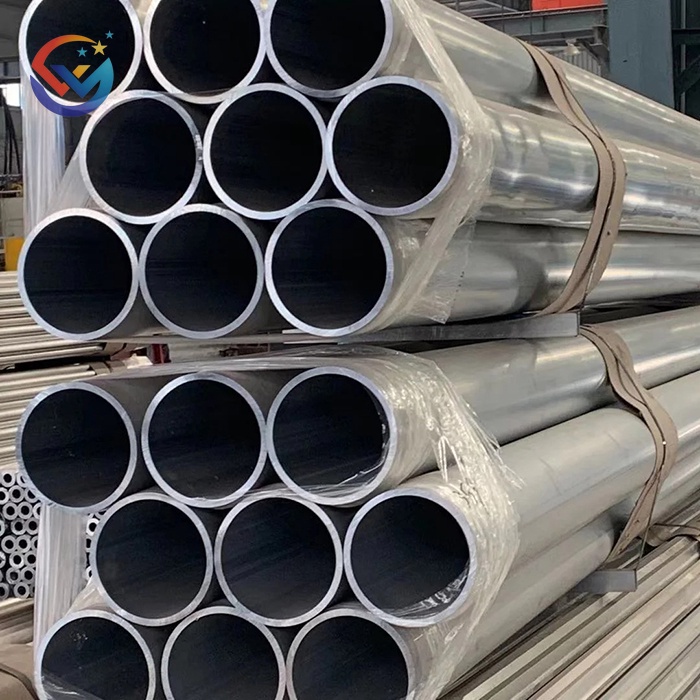

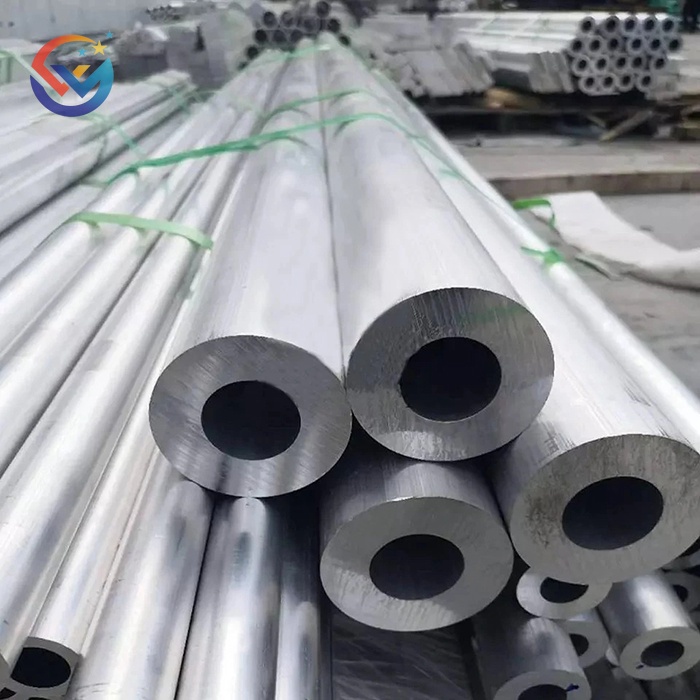

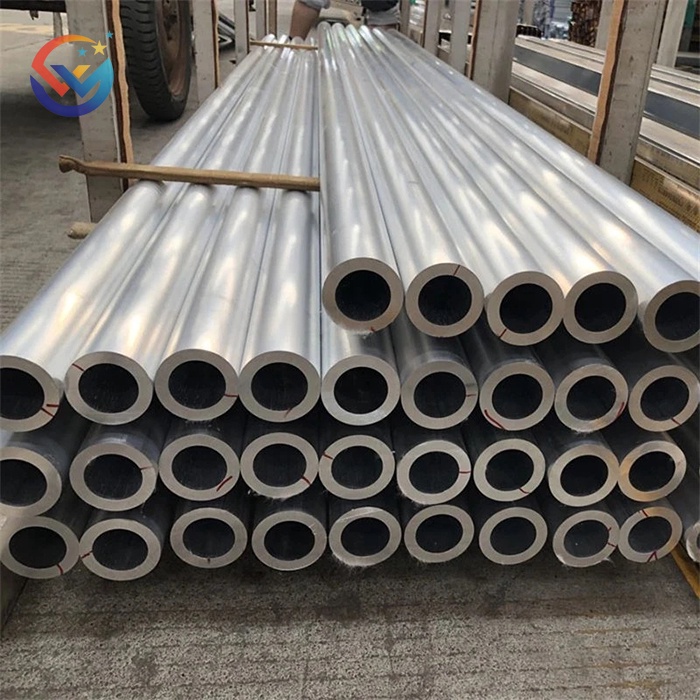

1050 Aluminum Pipe

1050 aluminum pipe adheres to the aluminum 1050 standard, which is an industrial standard using aluminum as the main component, favored for having light weight, high strength, good electrical and thermal conductivity. It is widely used in various fields including aerospace, transportation, construction, packaging, electronics.

WhatsApp：+86 15315786590

Email：admin@wuhangsteel.com

Product Description

Name: 1050 Aluminum Pipe
SKU: 0

1050 Aluminum Pipe Description

1050 aluminum alloy is composed of 99.5% pure aluminum, in addition to tiny amounts of copper, manganese, magnesium and other elements for smelting. The density of aluminum 1050 alloy is lighter than steel, managing to reduce product weight and increase energy efficiency. Besides, the high strength and good fatigue resistance of 1050 aluminum pipes improve its service life. Aluminum 1050 alloy also has remarkable electrical and thermal conductivity associated with better heat dissipation and energy transmission of the product. Also, 1050 aluminum pipes can resist the corrosion of acid, alkali, salt and other corrosive media to a large extent.

Product Parameters

Wall Thickness	0.4-20mm or customized	Length	5-2000mm or customized
Outer Diameter	10-2500mm or customized	Certificate	ISO, SGS, BV
Standard	JIS, AISI, ASTM, GB, DIN, EN, etc.
Brand	1000 Series: 1050 1060 1070 1100 1200 1235 etc. 3000 Series: 3003 3004 3005 3104 3105 3A21 etc. 5000 Series: 5005 5052 5083 5086 5154 5182 5251 5754 5A05 etc. 6000 Series: 6061 6063 6082 6A02 etc. 7000 Series: 7050 7475 7075 etc. 8000 Series: 8A06 8011 8090 etc.
Surface	Coating, Embossing, Drawing, Polishing, Anodizing, etc.
OEM Service	Punching, Cutting special size, Making flat surface, Surface treatment, etc.
Delivery Time	Received 30% after deposit 7-15 working days
Application	Construction, Shipbuilding, Decoration, Industry, Manufacturing, Machinery, Hardware and other fields
Sample	Free Offers Sample
Packaging	Strapping, Plastic bag, Film, Wooden pallet Standard seaworthy export packing or according to customer requirement

Chemical Composition

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Others: Each	Others: Total	Al: Min.
1050	0.25	0.40	0.05	0.05	0.05	-	0.05	0.03	0.03	-	99.50
1060	0.25	0.35	0.05	0.03	0.03	-	0.05	0.03	0.03	-	99.60
1070	0.20	0.25	0.04	0.03	0.03	-	0.04	0.03	0.05	-	99.70
1100	0.95 Si Fee		0.05~0.20	0.05	-	-	0.1	-	0.05	0.15	99.0
2014	0.5~1.2	0.7	3.9~5.0	0.4~1.2	0.2~0.8	0.10	0.25	0.15	0.05	0.15	Allowance
2017	0.2~0.8	0.7	3.5~4.5	0.4~1.0	0.4~0.8	0.10	0.25	0.15	0.05	0.15	91.5 - 95.5
2024	0.50	0.50	3.8~4.9	0.3~0.9	1.2~1.8	0.10	0.25	0.15	0.05	0.15	Allowance
3003	0.60	0.70	0.05~0.20	1.0~1.5	-	-	0.10	-	0.05	0.15	Allowance
3A21	0.60	0.70	0.20	1.0-1.6	0.05	-	0.15	0.1-0.2	-	-	Allowance
3004	0.30	0.70	0.25	1.0~1.5	0.8~1.3	-	0.25	-	0.05	0.15	Allowance
3005	0.60	0.70	0.30	1.0~1.5	0.2~0.6	0.10	0.25	0.10	0.05	0.15	Allowance
3105	0.60	0.70	0.30	0.3~0.8	0.2~0.8	0.20	0.40	0.10	0.05	0.15	Allowance
5005	0.30	0.70	0.20	0.20	0.5~1.1	0.1	0.25	-	0.05	0.15	Allowance
5052	0.25	0.40	0.10	0.10	2.2~2.8	0.15~0.35	0.10	-	0.05	0.15	Allowance
5754	0.40	0.40	0.10	0.50	2.6~3.6	0.30	0.20	0.15	0.05	0.15	Allowance
5A05	0.50	0.50	0.10	0.3-0.6	4.8-5.5	-	0.20	-	0.05	0.05	Allowance
5083	0.40	0.40	0.10	0.4~1.0	4.0~4.9	0.05~0.25	0.25	0.15	0.05	0.15	Allowance
6061	0.40~0.8	0.70	0.15~0.4	0.15	0.8~1.2	0.04~0.35	0.25	0.15	0.05	0.15	Allowance
6082	0.70~1.3	0.50	0.10	0.4~1.0	0.6~1.2	0.25	0.20	0.10	0.05	0.15	Allowance
7075	0.40	0.50	1.2~2.0	0.30	2.1~2.9	0.18~0.28	5.1~6.1	0.20	0.05	0.15	Allowance

Mechanical Properties

Tensile Strength

(MPa)

Test Stress

0.2% (MPa)

Hardness

Elongation Rate

(%)

105-145

≥85

≥34

≥12

Physical Performance

Density	Melting Point	Modulus of Elasticity	Thermal Conductivity	Thermal Expansion	Resistivity
2.71 Kg/m³	650°C	71 GPa	222 W/m.K	24 × 10-6/K	0.282 × 10-6Ω.m

Annealing State

Brand	Annealing State
1xxx: 1050, 1050A, 1060, 1100	O, H12, H14, H16, H18, H22, H24, H26, H28, H111
3xxx: 3003, 3004, 3005, 3105	O, H12, H14, H16, H18, H22, H24, H26, H28, H111
5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454	O, H22, H24, H26, H28, H32, H34, H36, H38, H111
6xxx: 6061, 6082	T4, T6, T451, T651
2xxx: 2024	T3, T351, T4
7xxx: 7075	T6, T651

Scope of Application

Aluminum Uses And Application Area
Food Packaging	Beverage can ends, cans, bottle caps, etc.
Building	Curtain walls, cladding, suspended ceilings, thermal insulation, venetian blinds, etc.
Transportation	Auto parts, passenger car bodies, aviation ships and air cargo containers.
Electronic Equipment	Electrical appliances, communication equipment,PCPlate drilling guide, lighting and heat dissipation materials, etc.
Consumer Goods	Umbrellas, cooking utensils, sports equipment, etc
Other	Military, color coated aluminum plate

Product Application

Packaging and shipping

Factory Display

FAQ

Q1: What steel products do you mainly supply?

A: We provide a full range of steel products, including rebar, round steel, flat steel, angle steel, channel steel, H-beam, medium and thick steel plate, flattened plate, patterned plate, hot rolled coil, cold rolled coil, seamless steel pipe, welded pipe, galvanized steel, color coated steel, stainless steel, alloy steel and more. Our products comply with international standards such as GB, ASTM, EN and JIS.

Q2: Do you support customized sizes, cutting and processing?

A: Yes. Standard fixed lengths are 6 meters and 12 meters. We can provide flattening, slitting, cutting, bending, polishing and non-standard customized processing services to meet various global engineering procurement requirements.

Q3: What is the minimum order quantity?

A: 1 ton for regular in-stock products; 5 tons for customized rolled products. Small trial orders are acceptable.

Q4: What surface treatments are available for steel products?

A: Hot rolled black surface, cold rolled bright surface, pickling, sandblasting, galvanizing, painting, anti-rust oil coating, mirror wire drawing and customized anti-corrosion treatment.
