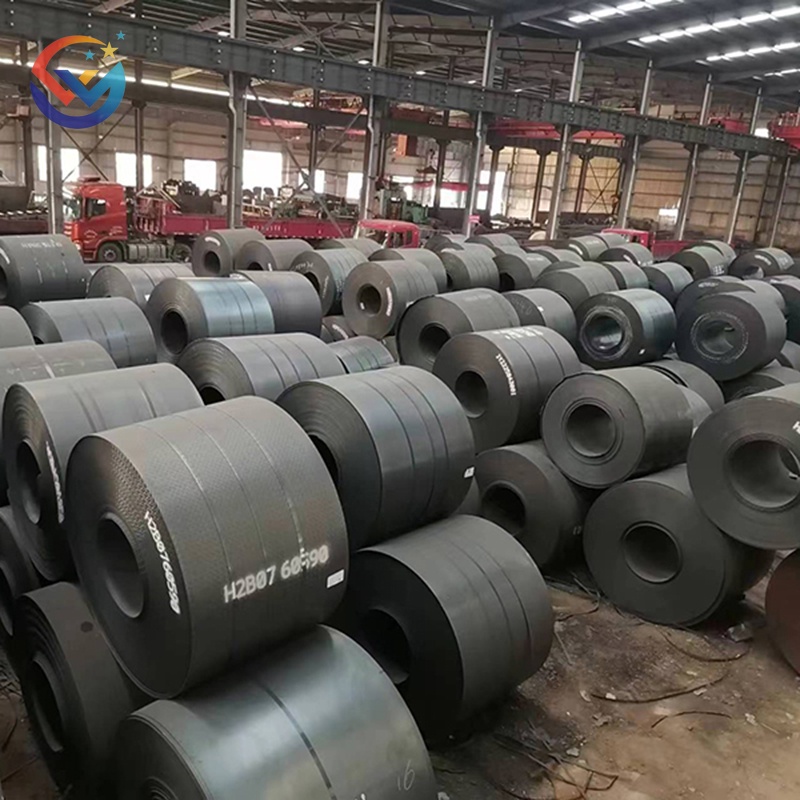

1045 Cold Rolled Steel Coil

1045 cold rolled steel coil is a medium carbon structural steel with good hot and cold workability and good mechanical properties. It is widely used in the industrial machinery manufacturing industry.

WhatsApp：+86 15315786590

Email：admin@wuhangsteel.com

Product Description

Name: 1045 Cold Rolled Steel Coil
SKU: 0

1045 Cold Rolled Steel Coil

AISI 1045 is a medium carbon steel designed to be able to function in areas requiring greater strength and hardness. This steel possesses excellent size accuracy, concentricity, and straightness which together minimize wear in high speed applications. AISI 1045 can be formed into turned, ground and polished coils that can be machined unsymmetrically with limited distortion. They are often used in the production of gears, shafts, axles, bolts, studs and machine parts.

Product Parameters

Product Name	1045 Cold Rolled Steel Coil
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	100mm-3000mm
Length	1m-12m, or Customized Size
Thickness	0.1mm-400mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film

Chemical Composition

Element	Content (%)
Carbon, C	0.43-0.50
Manganese, Mn	0.60-0.90
Sulfur, S	0.05 (max)
Phosphorous, P	0.04 (max)
Iron, Fe	Balance

Mechanical Properties

Properties	Metric	Imperial
Tensile strength	585 MPa	84800 psi
Yield strength	450 MPa	65300 psi
Modulus of elasticity	200 GPa	29000 ksi
Shear modulus (typical for steel)	80 GPa	11600 ksi
Poisson’s ratio	0.29	0.29
Elongation at break (in 50 mm)	12 %	12 %
Hardness, Brinell	163	163
Hardness, Knoop (converted from Brinell hardness)	184	184
Hardness, Rockwell B (converted from Brinell hardness)	84	84
Hardness, Vickers (converted from Brinell hardness)	170	170

Scope of Application

The following are the application areas of AISI 1045 carbon steel:

● Bolts
● Studs
● Gears
● Axles
● Shafts
● Machine parts.

Product Application

Packaging and shipping

Factory Display

FAQ

Q1: What steel products do you mainly supply?

A: We provide a full range of steel products, including rebar, round steel, flat steel, angle steel, channel steel, H-beam, medium and thick steel plate, flattened plate, patterned plate, hot rolled coil, cold rolled coil, seamless steel pipe, welded pipe, galvanized steel, color coated steel, stainless steel, alloy steel and more. Our products comply with international standards such as GB, ASTM, EN and JIS.

Q2: Do you support customized sizes, cutting and processing?

A: Yes. Standard fixed lengths are 6 meters and 12 meters. We can provide flattening, slitting, cutting, bending, polishing and non-standard customized processing services to meet various global engineering procurement requirements.

Q3: What is the minimum order quantity?

A: 1 ton for regular in-stock products; 5 tons for customized rolled products. Small trial orders are acceptable.

Q4: What surface treatments are available for steel products?

A: Hot rolled black surface, cold rolled bright surface, pickling, sandblasting, galvanizing, painting, anti-rust oil coating, mirror wire drawing and customized anti-corrosion treatment.
