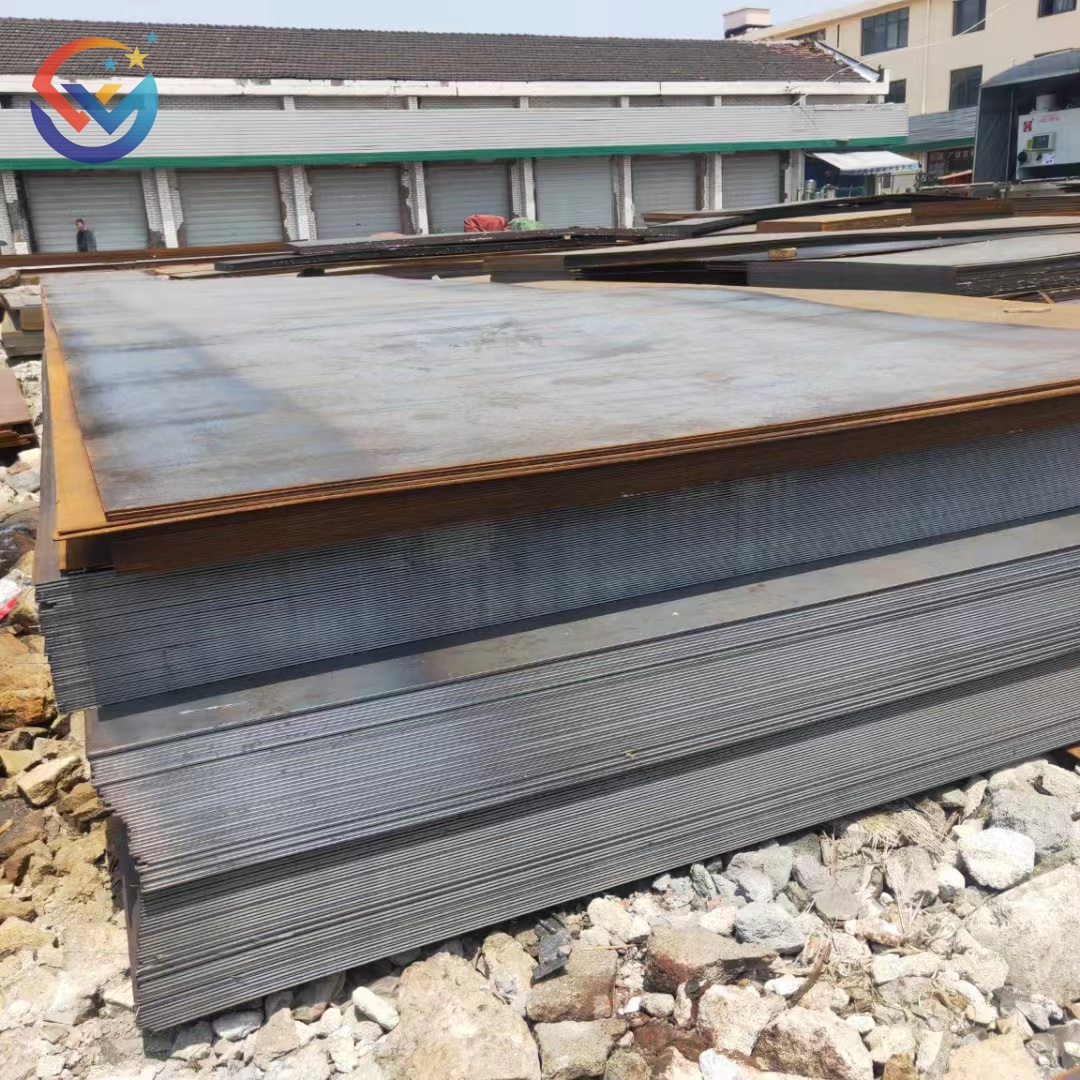

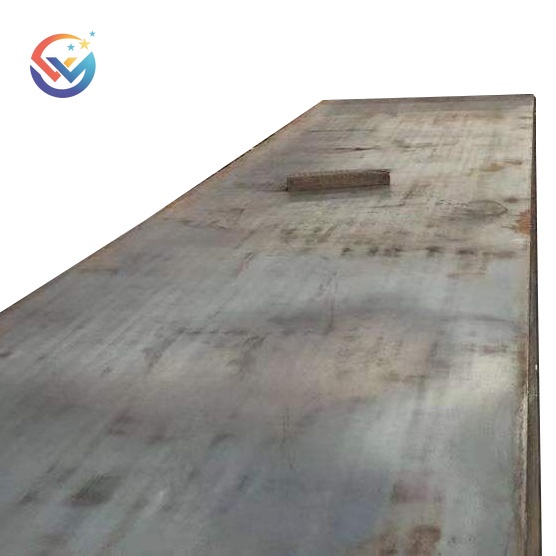

Carbon Shipbuilding Steel Plate

Shipbuilding steel plate refers to the carbon and alloy steel plate used in offshore and marine contructions, common grades are A, B, D, E, AH32/36/40, DH32/36/40, and EH32/36/40 which ranged from different strength.

WhatsApp：+86 15315786590

Email：admin@wuhangsteel.com

Product Description

Name: Carbon Shipbuilding Steel Plate
SKU: 0

Carbon Shipbuilding Steel Plate Description

Shipbuilding steel plate refers to hot-rolled steel for the manufacture of ship structures produced in accordance with the requirements of the construction society. Often used as a special steel ordering, scheduling, sales, a ship including ship plates, steel and so on.

The Shipbuilding steel plate can be divided into general strength structural steel and high strength structural steel according to its minimum yield point strength level.

AGICO supplies and exports 2 types of ship steel, medium strength shipbuilding plate and high strength shipbuilding plate. All steel plate product can be manufactured according to Society LR, ABS, NK, GL, DNV, BV, KR, RINA, CCS, etc.

Product Parameters

Product Name	Carbon Shipbuilding Steel Plate
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	100mm-3000mm
Length	1m-12m, or Customized Size
Thickness	0.1mm-400mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film

Chemical Composition

Grade	C % ≤	Mn %	Si %	P % ≤	S % ≤	Al %	NB %	V %
A	0.22	≥ 2.5 C	0.10-0.35	0.04	0.40	-	-	-
B	0.21	0.60-1.00	0.10-0.35	0.04	0.40	-	-	-
D	0.21	0.60-1.00	0.10-0.35	0.04	0.04	≥ 0.015	-	-
E	0.18	0.70-1.20	0.10-0.35	0.04	0.04	≥ 0.015	-	-
A32 D32 E32	0.18	0.70-1.60 0.90-1.60 0.90-1.60	0.10-0.50	0.04	0.04	≥ 0.015	-	-
A36 D36 E36	0.18	0.70-1.60 0.90-1.60 0.90-1.60	0.10-0.50	0.04	0.04	≥ 0.015	0.015-0.050	0.030-0.10

Mechanical Properties

Grade	Thickness (mm)	Yieldpoint (Mpa) ≥	Tensile Strength (Mpa)	Elongation (%) ≥	V-impact Test			Cold Bend Test
					Temperature (℃)	Average AKV A kv /J		b=2a 180°	b=5a 120°
						Lengthways	Crosswise
						≥
A	≤ 50	235	400-490	22	—	—	—	d=2a	—
B					0	27	20	—	d=3a
D					-10
E					-40
A32	≤ 50	315	440-590	22	0	31	22	—	d=3a
D32					-20
E32					-40
A36	≤ 50	355	490-620	21	0	34	24	—	d=3a
D36					-20
E36					-40

Product Application

Packaging and shipping

Factory Display

FAQ

Q1: What steel products do you mainly supply?

A: We provide a full range of steel products, including rebar, round steel, flat steel, angle steel, channel steel, H-beam, medium and thick steel plate, flattened plate, patterned plate, hot rolled coil, cold rolled coil, seamless steel pipe, welded pipe, galvanized steel, color coated steel, stainless steel, alloy steel and more. Our products comply with international standards such as GB, ASTM, EN and JIS.

Q2: Do you support customized sizes, cutting and processing?

A: Yes. Standard fixed lengths are 6 meters and 12 meters. We can provide flattening, slitting, cutting, bending, polishing and non-standard customized processing services to meet various global engineering procurement requirements.

Q3: What is the minimum order quantity?

A: 1 ton for regular in-stock products; 5 tons for customized rolled products. Small trial orders are acceptable.

Q4: What surface treatments are available for steel products?

A: Hot rolled black surface, cold rolled bright surface, pickling, sandblasting, galvanizing, painting, anti-rust oil coating, mirror wire drawing and customized anti-corrosion treatment.
