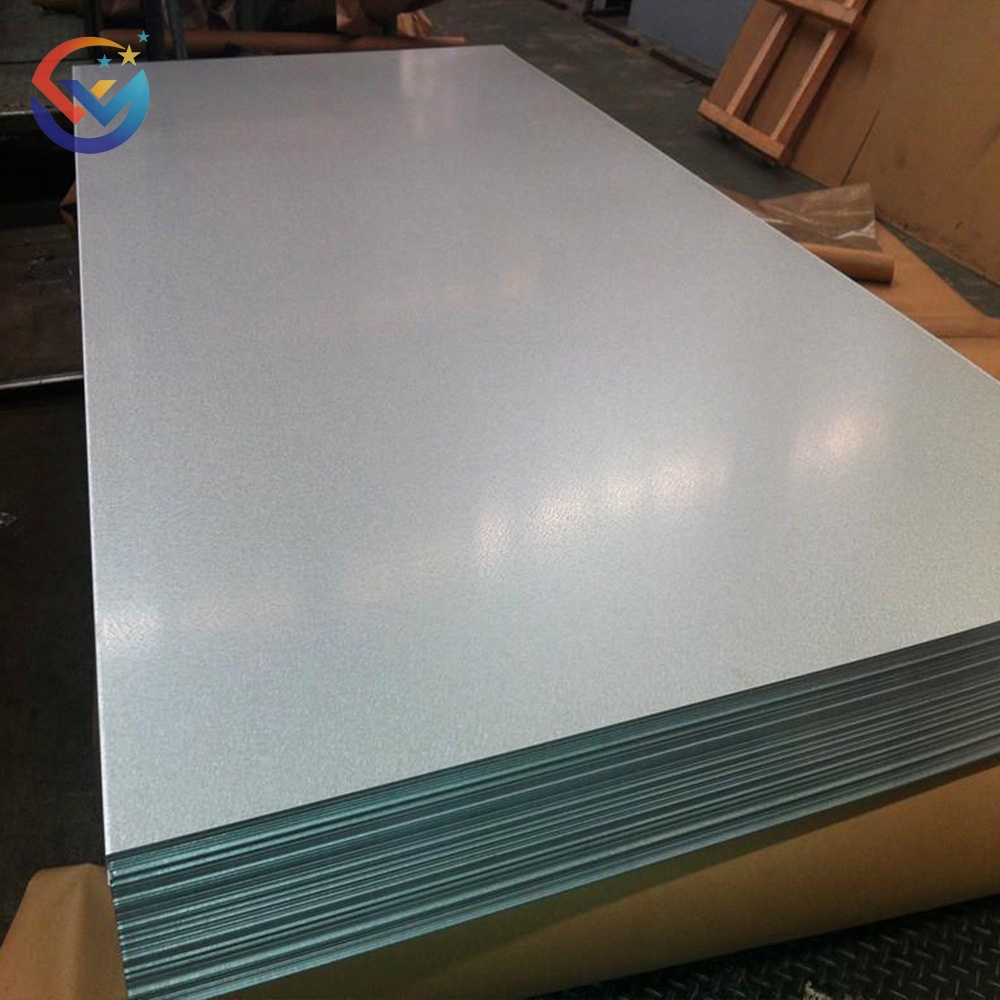

DX52D/SGCD1 Galvanized Sheet

DX52D is a hot-dip galvanized pipe material. In order to improve the corrosion resistance of the steel pipe, the general steel pipe is galvanized. Galvanized steel pipe is divided into hot dip galvanized and electric galvanized two, hot dip galvanized galvanized layer is thick, electric galvanized low cost, the surface is not very smooth.

WhatsApp：+86 15315786590

Email：admin@wuhangsteel.com

Product Description

Name: DX52D/SGCD1 Galvanized Sheet
SKU: 0

DX52D/SGCD1 Galvanized Sheet Description

DX52D galvanized sheet is a galvanized steel sheet material with a thin and uniform zinc layer on its surface. This zinc layer can effectively protect the steel sheet from corrosion and oxidation. In addition, DX52D galvanized sheet also has good processing performance and welding performance, and can meet various building processing and construction needs. DX52D galvanized sheet can be used for various welding operations. Since there is a layer of galvanized layer on its surface, you need to pay attention to the protection of the galvanized layer during welding to avoid welding defects.

Scope of Application

Galvanizing products are widely used in industry, agriculture, animal husbandry and fishery, energy, transportation, chemical industry, light industry, home appliances, construction, communications, national defense and other fields.

Product Parameters

Product Name	DX52D/SGCD1 Galvanized Sheet
Thickness	0.12mm-6.00mm
Width	600mm-1500mm
Length	1m-12m, Support Customization
Standard	AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc.
Zinc Layer	Hot Galvanizing: 60-275g/m²
Zinc Layer	Pre-galvanized: 80-275g/m²

Chemical Composition

Standard	Grade	C	Si	Mn	P	S	Ti
Forcold Forming Chinese Standard	DX51D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX52D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX53D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX54D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX56D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX57D+Z	0.12	0.50	0.60	0.100	0.045	0.30
Forcold Forming Japanese Standard	SGCC	0.15	0.50	0.80	0.050	0.030	0.025
	SGCD1 SGCD2	0.12 0.10	0.50 0.50	0.60 0.45	0.040 0.030	0.030 0.030	0.025 0.025
	SGCD3	0.08	0.50	0.45	0.030	0.030	0.025
	SGCD4	0.06	0.50	0.45	0.030	0.030	0.025
For Structure Japanese Standard	SGC340	0.25	0.50	1.70	0.200	0.035	0.025
	SGC400 SGC440	0.25 0.25	0.50 0.50	1.70 2.00	0.200 0.200	0.035 0.035	0.150 0.150
	SGC490	0.30	0.50	2.00	0.200	0.035	0.025
	SGC510	0.30	0.50	2.50	0.200	0.035	0.025
For Structure AISI Standard	S220GD+Z	0.20	0.60	0.70	0.100	0.045	0.025
	S250GD+Z	0.20	0.60	0.70	0.100	0.045	0.025
	S280GD+Z	0.20	0.60	0.70	0.100	0.045	0.025
	S320GD+Z	0.20	0.60	0.70	0.100	0.045	0.025
	S350GD+Z	0.20	0.60	0.70	0.100	0.045	0.150
	S550GD+Z	0.20	0.60	0.70	0.100	0.045	0.150

Mechanical Properties

Grade	Yield Strength MPa≥	Tensile Strength MPa≥	Elongation A%≥
DX51D Z/ZM/AZ/AM	240-380	270-500	22
DX52D Z/ZM/AZ/AM	140-300	270-420	26
DX53D Z/ZM/AZ/AM	140-260	270-380	30
DX54D Z/ZM/AZ/AM	120-220	260-350	36
S220GD Z/ZM/AM	220	300	20
S250GD Z/ZM/AZ/AM	250	330	19
S280GD Z/ZM/AM	280	360	18
S300GD A/AM	300	380	18
S320GD Z/ZM/AM	320	390	17
S350GD Z/ZM/AZ/AM	350	420	16
S450GD A/AM	450	480	15
S550GD Z/ZM/AZ/AM	550	550	-

Galvanized Surface Selection

Zero Spangle	Minimized Spangle	Normal Spangle	Large Spangle

Use of The Environment	Recommended Zinc Thickness
Indoor Use	Z10 or Z12 (100g/㎡or 120g/㎡)
Suburbs	Z20 and Painting (200g/㎡)
Urban or Industrial Area	Z27 (270g/㎡) or G90 (US Standard) and painted
Coastal Area	Thicker than Z27 (270g/㎡) or G90 (US Standard) and painted
Punch or Deep Drawing Application	Thicker than Z27 (270grams/㎡) or G90 (US Standard) avoid coating peeling after stamping

Surface Treatment Type	Code	Features
Chromic Acid Treatment	C	Good corrosion resistance, suitable for bare state
Chromic Acid Treatment+Oiling	S	Good corrosion resistance
Phosphoric Acid Treatment (Including Sealing Treatment)	P	Have a certain corrosion resistance, good paint performance
Phosphoric Acid Treatment (Including Sealing Treatment)+Oiling	Q	Has a certain corrosion resistance, good paint performance, prevent rust during transportation and storage
Phosphoric Acid Treatment (Excluding Sealing Treatment)	T	Have a certain corrosion resistance, good paint performance
Phosphoric Acid Treatment (Excluding Sealing Treatment)+Oiling	V	Has a certain corrosion resistance, good paint performance, and prevent rust
Oiling	O	Prevent rust during transportation and storage
No Treatment	M	Suitable for immediate painting

Material Comparison

Chinese Standard	Japan Standard	European Standard
DX51D Z/DC51D Z (CR)	SGCC	DX51D Z
DX52D Z/DC52D Z	SGCD1	DX52D With
DX53D Z/DC53D Z/DX54D Z/DC54D Z	SGCD2/SGCD3	DX53D Z/DX54D Z
S220/250/280/320/350/550GD Z	SGC340/400/440/490/570	S220/250/280/320/350GD Z
DX51D Z/DD51D Z (HR)	SGHC	DX51D Z

Product Application

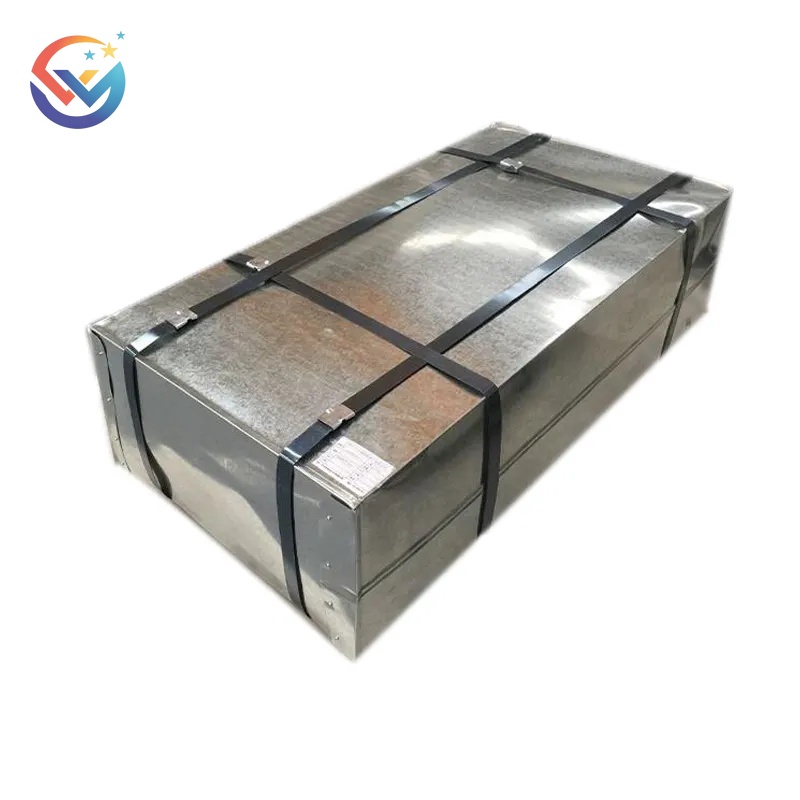

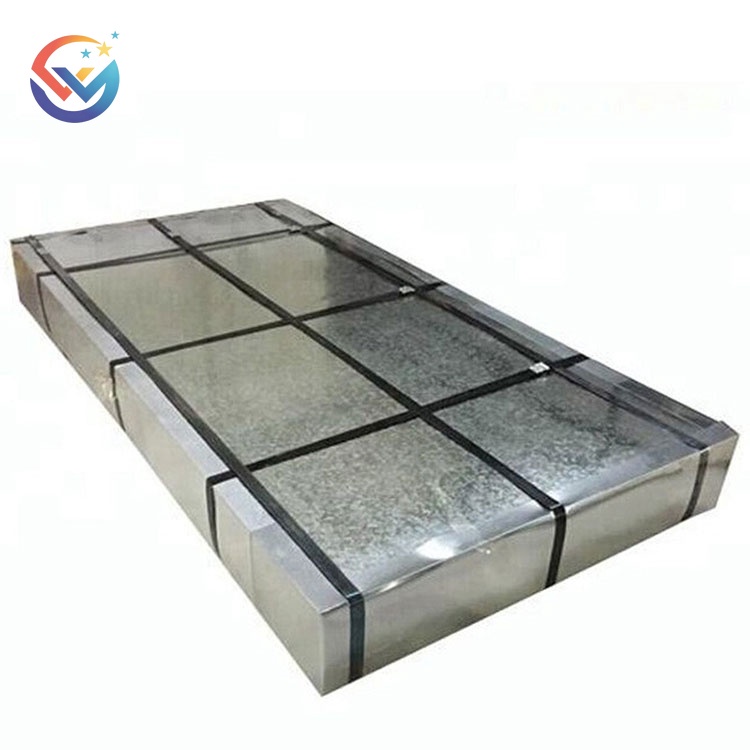

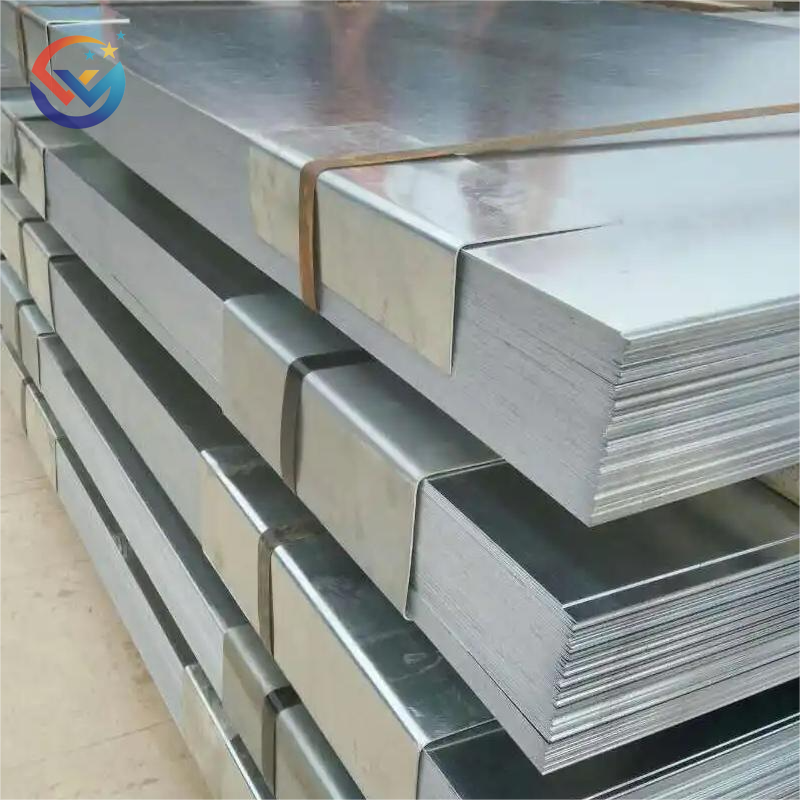

Packaging and shipping

Factory Display

FAQ

Q1: What steel products do you mainly supply?

A: We provide a full range of steel products, including rebar, round steel, flat steel, angle steel, channel steel, H-beam, medium and thick steel plate, flattened plate, patterned plate, hot rolled coil, cold rolled coil, seamless steel pipe, welded pipe, galvanized steel, color coated steel, stainless steel, alloy steel and more. Our products comply with international standards such as GB, ASTM, EN and JIS.

Q2: Do you support customized sizes, cutting and processing?

A: Yes. Standard fixed lengths are 6 meters and 12 meters. We can provide flattening, slitting, cutting, bending, polishing and non-standard customized processing services to meet various global engineering procurement requirements.

Q3: What is the minimum order quantity?

A: 1 ton for regular in-stock products; 5 tons for customized rolled products. Small trial orders are acceptable.

Q4: What surface treatments are available for steel products?

A: Hot rolled black surface, cold rolled bright surface, pickling, sandblasting, galvanizing, painting, anti-rust oil coating, mirror wire drawing and customized anti-corrosion treatment.
